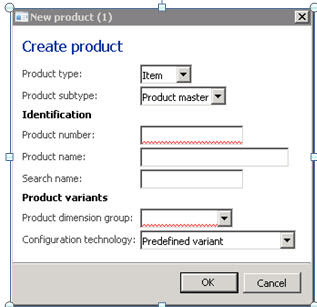

Product type
Item type - This option will be selected if the product is an inventoried product
Service type - This option will be selected if the product is a non-inventoried product
Product sub type
Product master - Products of this sub-type must have a product dimension group that
specifies the product dimensions that are active for the product (color, size, and configuration)
o Configuration technology
§ Predefined variant - This type should be chosen if the product will not be
configured, but simply rely on the user’s choice of Color, and/or Size, and/or
Configuration for each transaction
§ Dimension-based configuration - This type should be chosen if the user will
build a configurable BOM that relies on configuration rules to build the
Config ID and the BOM lines. (This technology may only be chosen if
Configuration is active on the Product dimension group selected for the
product)
§ Rule-based configuration - This type should be chosen if the product will
use Product builder
§ Constraint-based configuration - This type should be chosen if the product
will use the new AX 2009 Constraint based product configuration method.
(This technology may only be chosen if Configuration is active and is the lone
Product dimension active for the Product dimension group selected for the
product)
Product - Products of this sub-type do NOT have any product dimensions, and therefore do
not have a product dimension group
Product variant - A large amount of information may be maintained at the Product master
level, including, but not limited to:
o Product dimensions
o Images
o Product categories
o Product attributes
o Unit conversions
For Product master products, Product dimensions and Product variants are
extremely important. Both may be managed from menu items in the ribbons
section of the Products form:
Dimensions
Product dimensions: Color, Size, Configuration
Storage dimensions: Site, Warehouse, Location, Pallet ID
Tracking dimensions: Batch number, Serial number
Release product
Once product variants have been created at the instance level, they must be released
to individual companies before transactions may be performed in the respective
company. Variants may be released from any of the Products forms (All, Distinct,
Product masters), or from the Product variants form by clicking Release products in
the ribbon section of the form.
Tech part (Data model)
AX 2012 Item AIF Web Service (InventItemService)
Table Name
|
Table Description
|
EcoResProduct
|
The EcoResProduct table stores products and is the base table in the products hierarchy.
|
EcoResProductMaster
|
The EcoResProductMaster table stores product masters.
|
EcoResProductIdentifier
|
The EcoResProductIdentifier table contains a product identification that is available for users.
|
EcoResDistinctProduct
|
The EcoResDistinctProduct table stores products.
|
EcoResDistinctProductVariant
|
The EcoResDistinctProductVariant table stores product variants.
|
EcoResProductDimensionGroup
|
The EcoResProductDimensionGroup table contains information about a dimension group.
|
EcoResProductDimensionGroupProduct
|
The EcoResProductDimensionGroupProduct table stores information about relationships between products and dimension groups.
|
EcoResColor
|
The EcoResColor table stores color names.
|
EcoResSize
|
The EcoResSize table stores size names.
|
EcoResConfiguration
|
The EcoResConfiguration table stores configuration names.
|
EcoResProductMasterColor
|
The EcoResProductMasterColor table stores information about colors assigned to product masters.
|
EcoResProductMasterSize
|
The EcoResProductMasterSize table stores information about sizes that are assigned to product masters.
|
EcoResProductMasterConfiguration
|
The EcoResProductMasterConfiguration table stores information about configurations assigned to product masters.
|
EcoResProductVariantColor
|
The EcoResProductVariantColor table stores information about the colors that are assigned to product variants.
|
EcoResProductVariantSize
|
The EcoResProductVariantSize table stores information about the sizes that are assigned to product variants.
|
EcoResProductVariantConfiguration
|
The EcoResProductVariantConfiguration table stores information about the configurations that are assigned to product variants.
|
EcoResProductMasterDimensionValue
|
The EcoResProductMasterDimensionValue table is the base table in the product model dimension hierarchy.
|
EcoResProductVariantDimensionValue
|
The EcoResProductVariantDimensionValue table is the base table in the product variant dimension hierarchy.
|
EcoResProductDimensionAttribute
|
The EcoResProductDimensionAttribute table contains definitions of product dimension attributes (categories).
|
EcoResInstanceValue
|
The EcoResInstanceValue table contains the definitions of the instances of the components or products.
|
EcoResProductInstanceValue
|
The EcoResProductInstanceValue table contains definitions of values for the instances of attributes of a product.
|
InventTable
|
The InventTable table contains information about items.
|
InventTableModule
|
The InventTableModule table contains information about purchase, sales, and inventory specific settings for items.
|
InventItemLocation
|
The InventItemLocation table contains information about items and the related warehouse and counting settings. The settings can be made specific based on the items configuration and vary from warehouse to warehouse.
|
InventItemSalesSetup
|
The InventItemSalesSetup table contains the default settings for items, such as site and warehouse. The values are related to sales settings.
|
InventItemInventSetup
|
The InventItemInventSetup table contains the default settings for items, such as site and warehouse. The values are related to inventory settings.
|
InventItemPurchSetup
|
The InventItemPurchSetup table contains the default settings for items, such as site and warehouse. The values are related to purchase settings.
|
InventItemSetupSupplyType
|
The InventItemSetupSupplyType table contains information about the sourcing of items.
|
InventDim
|
The InventDim table contains values for inventory dimensions.
|
InventDimCombination
|
The InventDimCombination table contains variants of items. The variants are created as product variants that are based on product dimensions such as size, color, and configuration. These variants are replicated to the legal entity.
|
